NC GENOSS™ PTCA
Back
Angioplasty Catheter, Balloon Dilatation, Coronary, Perfusing
NC GENOSS™ PTCA
Description
– Excellent entry performance with self-developed hydrophilic coating
– Hypotube with skive structure for strong pushability
– Low re-folding profile on during balloon deflation
More Information
Hydrophilic coating
- A coating with great trackability and crossability
Noncompliant balloon with superb material and progressive forming technology
- A technology for excellent durability under high pressure circumstance
Soft and tapered tip design
- Soft and tapered cross tip for crossing challenging lesions easily
Innovative and flexible distal shaft
- Maximization of flexibility by advanced design
Great pushability and trackability
- PTFE coated hypotube combined with long skive for great pushability and trackability
Technical Specificaitions
| Distal shaft | 2.8 Fr (0.92 mm) |
| Proximal shaft | 2.0 Fr (0.68 mm) |
| Lesion entry profile | 0.017″ (0.43 mm) |
| Nominal pressure | 14 atm |
| Rated burst pressure | 20 atm |
| Balloon material | Non-compliant balloon |
| Balloon folding | 3-folding |
| Min. guiding catheter ID | 5 Fr (0.056″) |
| Max. guide wire OD | 0.014″ (0.36 mm) |
| Catheter type | Rapid exchange |
| Usable length | 1450 mm |
| Shelf life | 3 years from sterilization date |

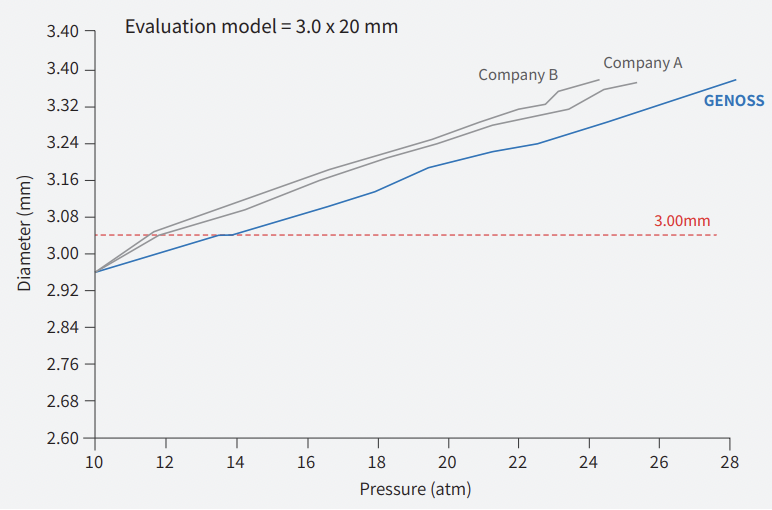

Compliance profile

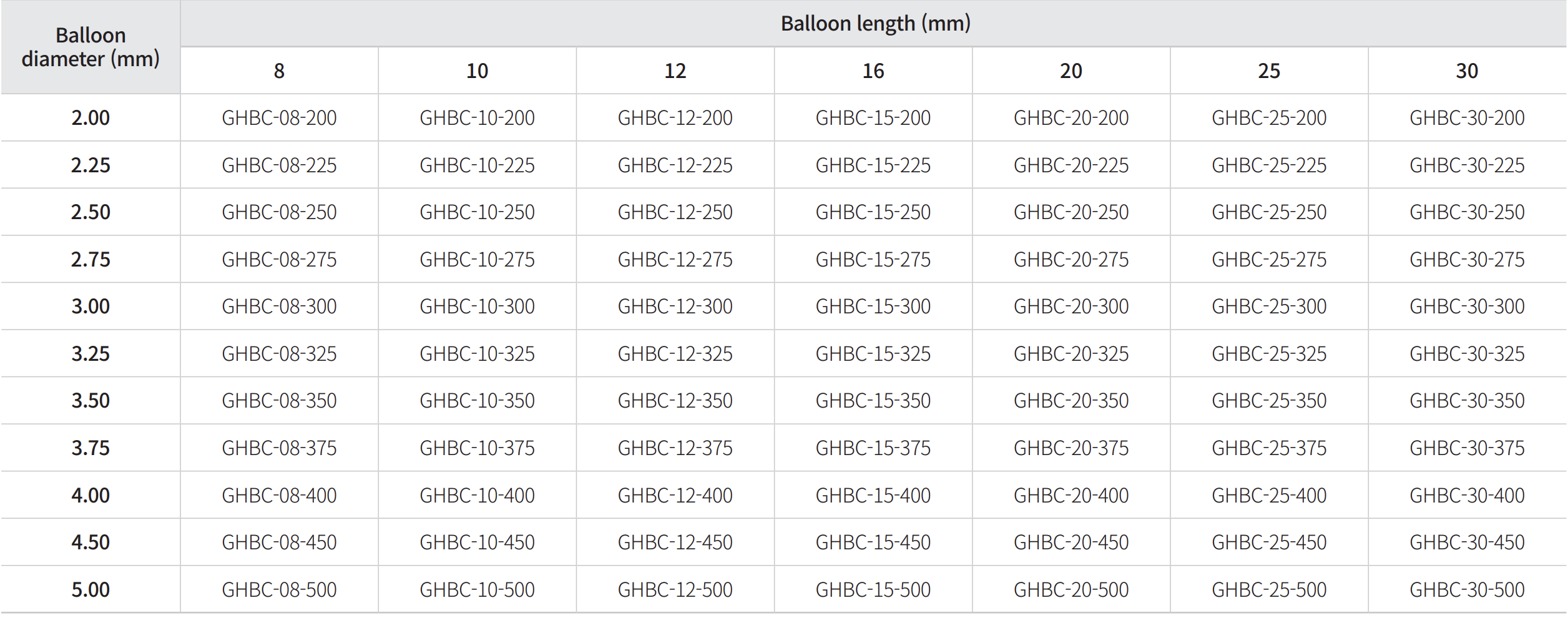

Model Name
