GENOSS™ PTCA
Back
Angioplasty Catheter, Balloon Dilatation, Coronary, Perfusing
GENOSS™ PTCA
Description
– Excellent entry performance with self-developed hydrophilic coating
– hypotube with skive structure for strong pushability
– Low re-folding profile during balloon deflation
More Information
Hydrophilic coating
- A coating with great trackability and crossability
Specially engineered 3-folded balloon
- Excellent re-wrapping performance for superior re-crossability
Compliance profile
- Assurance of precise balloon inflation by controlled pressure with low compliance property
Small and flexible tip
- Soft and tapered cross tip for crossing challenging lesions easily
Great pushability and trackability
- PTFE coated hypotube combined with long skive for great pushability and trackability
Wide choice
- A wide range of balloon size
- Length : 10 ~35 mm, Diameter : 1.50 ~ 4.00 mm (including quarter sizes)
Features
The GENOSS PTCA Balloon Catheter has a thin diameter feature, and advanced balloon folding technology shows excellent performance.
Technical Data

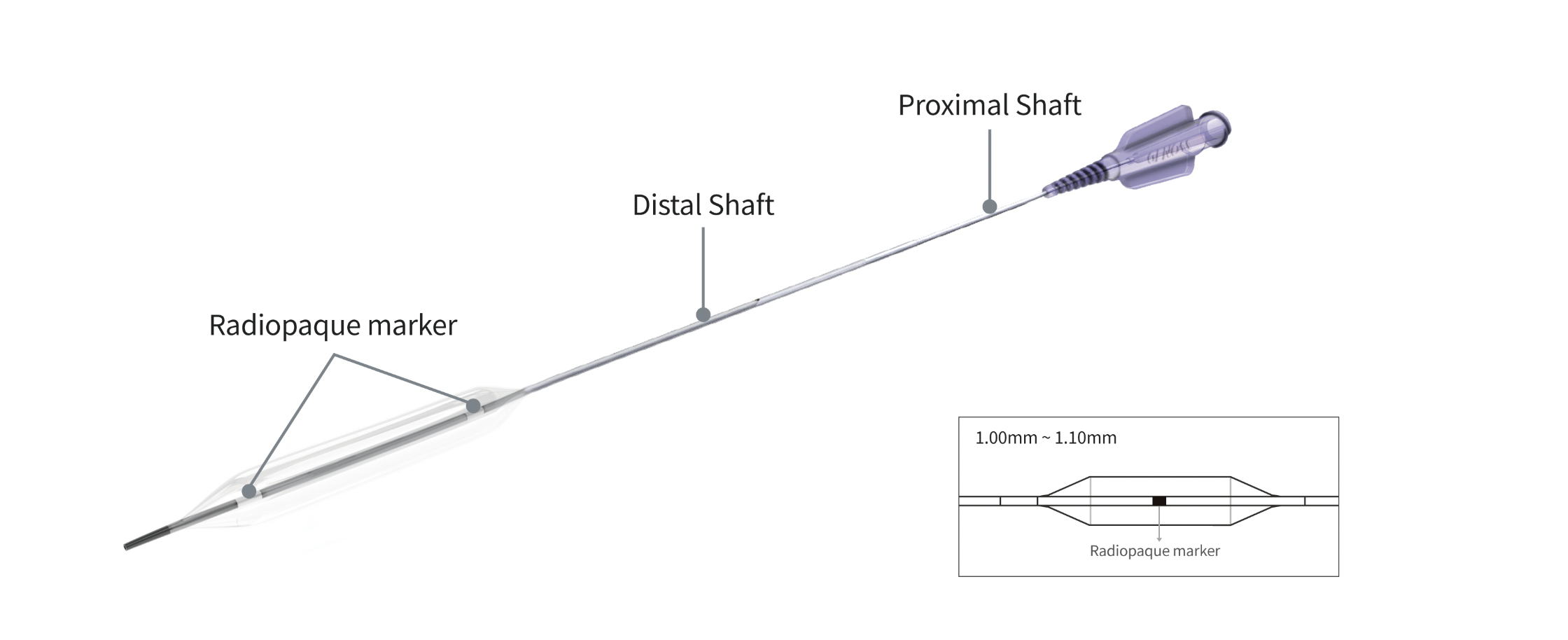

| Distal shaft | 2.8 Fr (0.92 mm) |
| Proximal shaft | 2.0 Fr (0.68 mm) |
| Lesion entry profile | 0.017″ (0.43 mm) |
| Nominal pressure | 7 atm (1.00 mm ~ 1.50 mm), 8 atm (2.00 mm ~ 5.00 mm) |
| Rated burst pressure |
14 atm (3.75 mm, 4.00 mm ~ 5.00 mm) 15 atm (1.00 mm ~ 1.50 mm) 16 atm (2.00 mm ~ 3.50 mm) |
| Balloon material | Semi-compliant balloon |
| Balloon folding | 3-folding |
| Min. guiding catheter ID | 5 Fr (0.056″) |
| Max. guide wire OD | 0.014″ (0.36 mm) |
| Catheter type | Rapid exchange |
| Usable length | 1450 mm |
| Shelf life | 3 years from sterilization date |

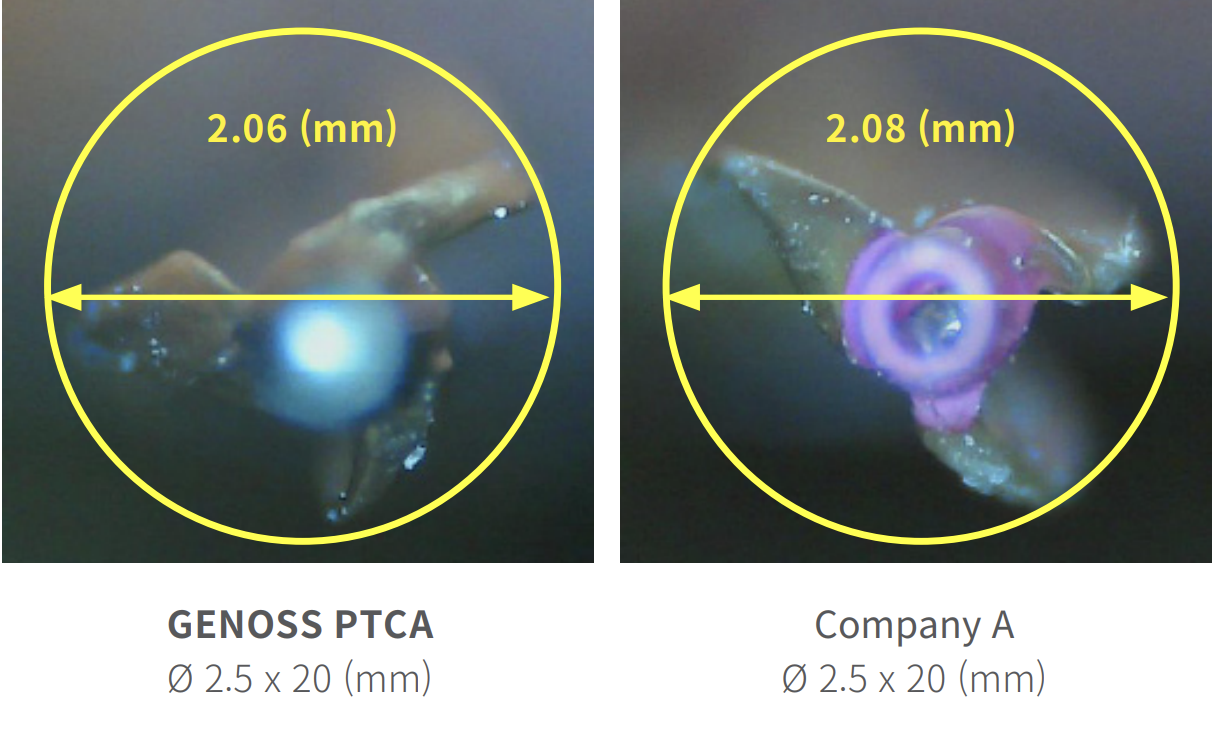

After re-folding profile

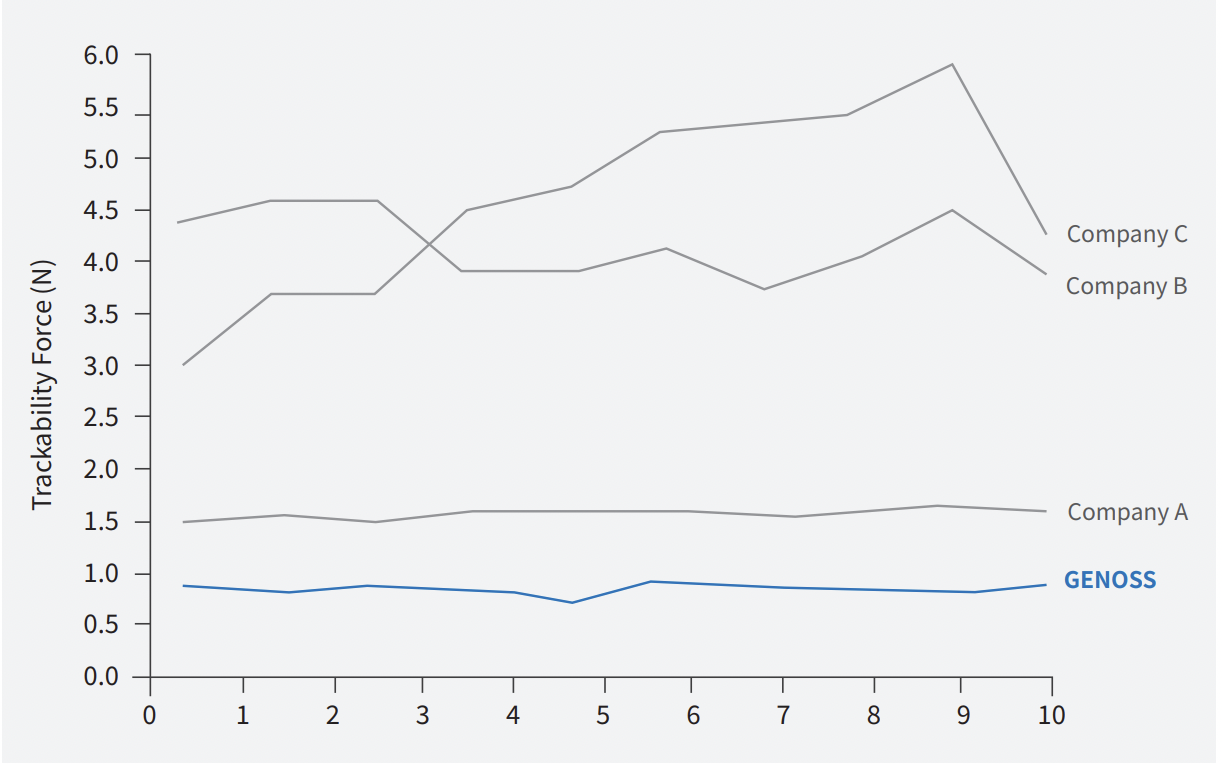

Trackability

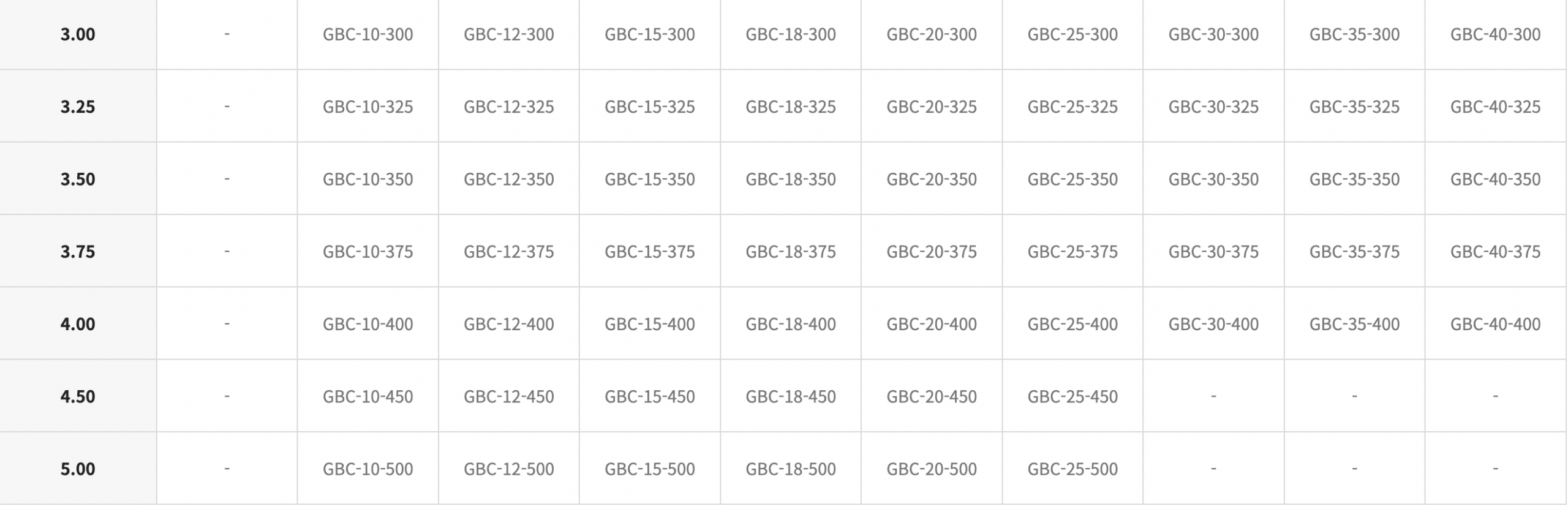

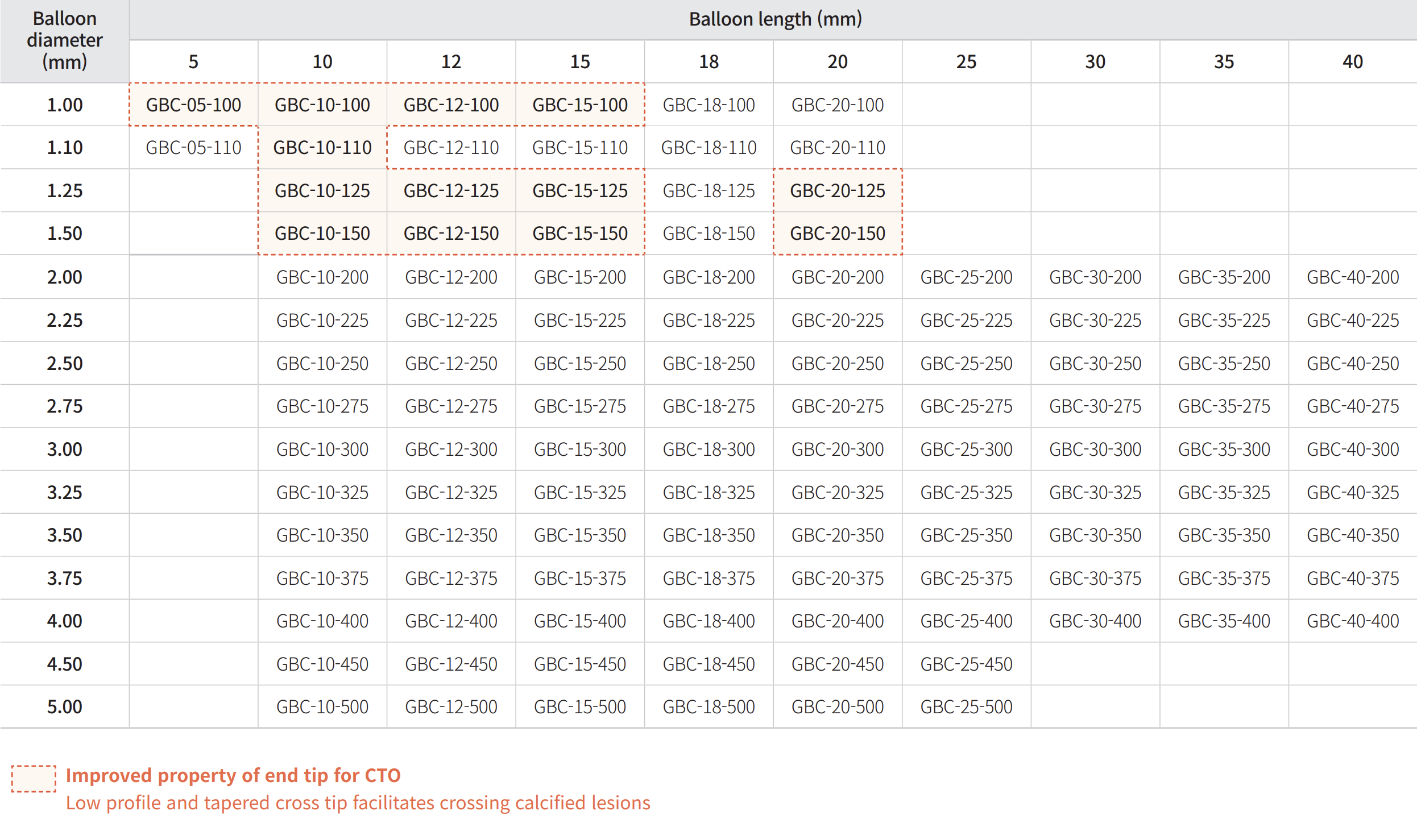

Model Name
