GENOSS™ DCB

Back

Angioplasty Catheter, Balloon Dilatation, Coronary, Perfusing

GENOSS™ DCB

Description

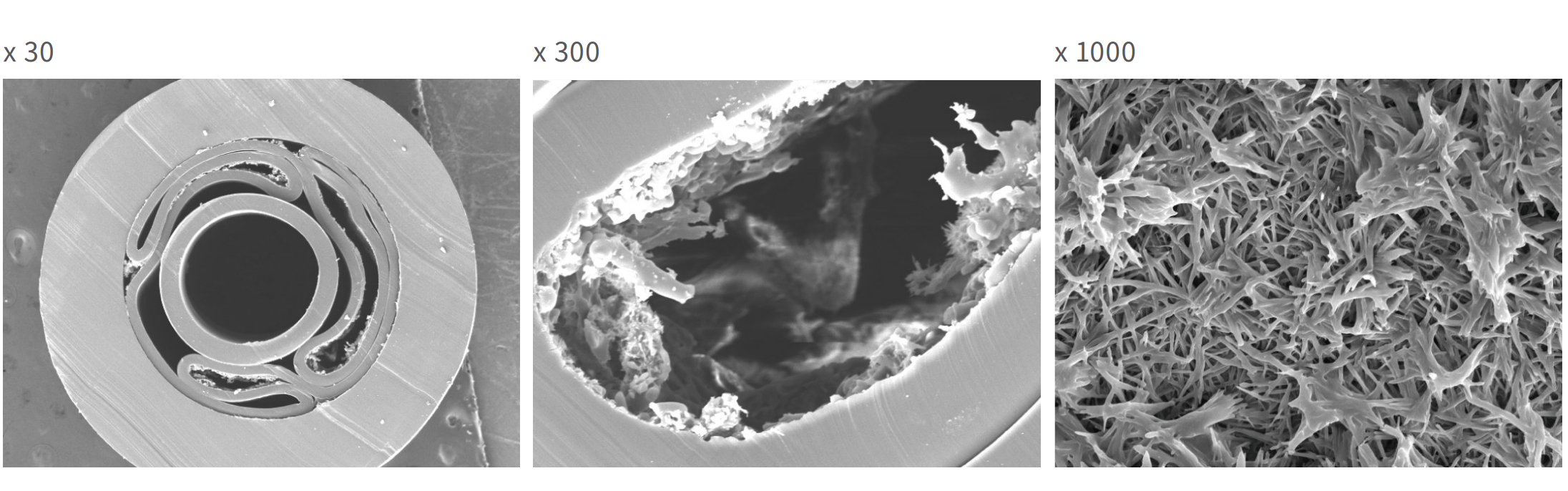

– Paclitaxel crystal structure coating of 3μm/mm²

– Uniform coating layer with a thickness of 10μm.

– Excellent drug delivery to target lesion

Product Inquiry

More Information

Description

Crystalline paclitaxel of 3.5 µg/mm2 coating with shellac

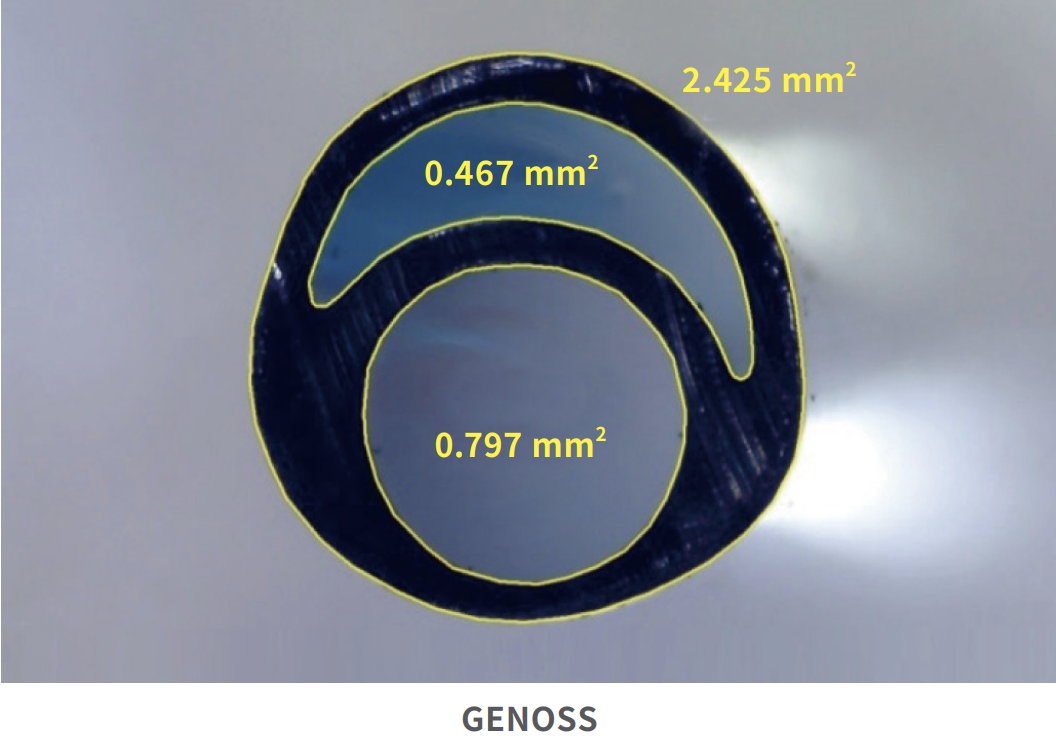

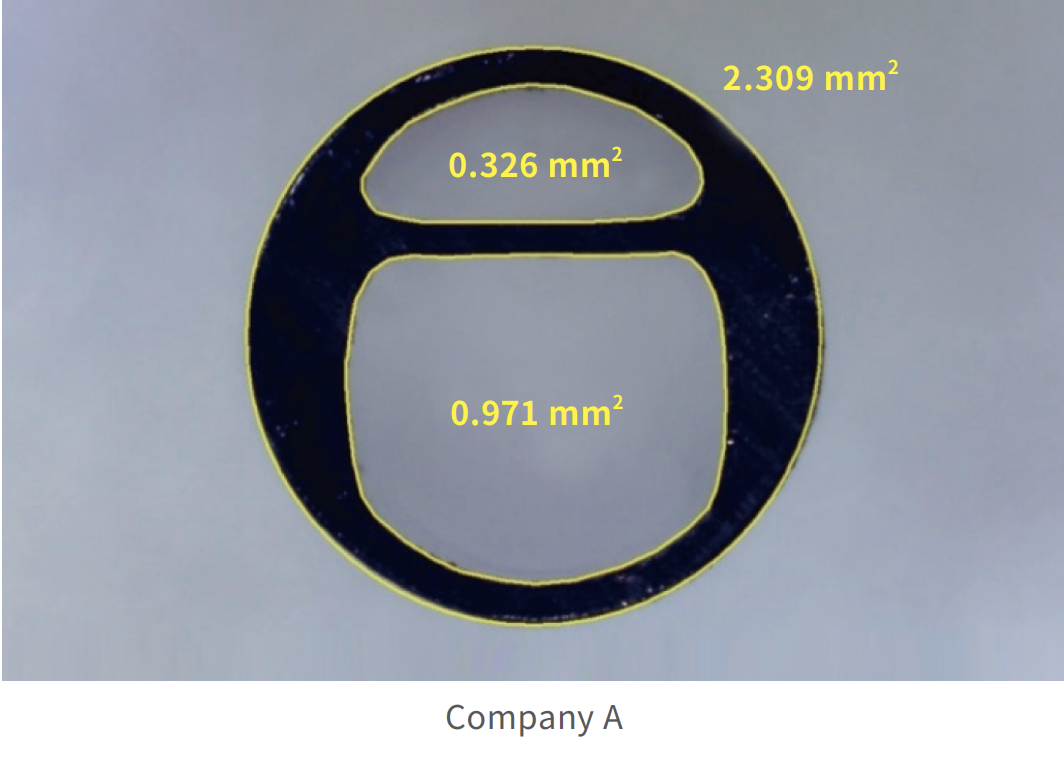

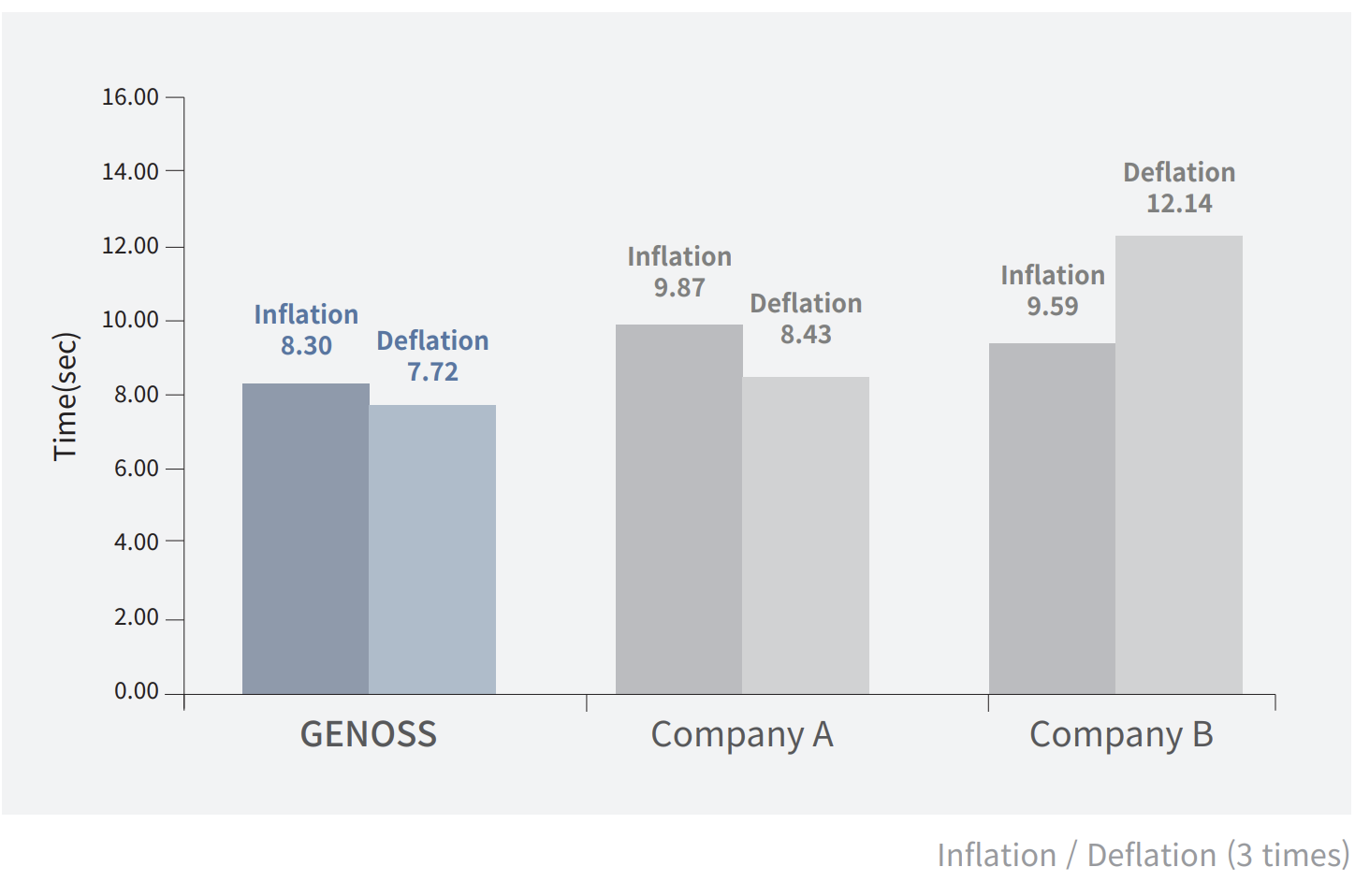

Rapid deflation by large lumen diameter

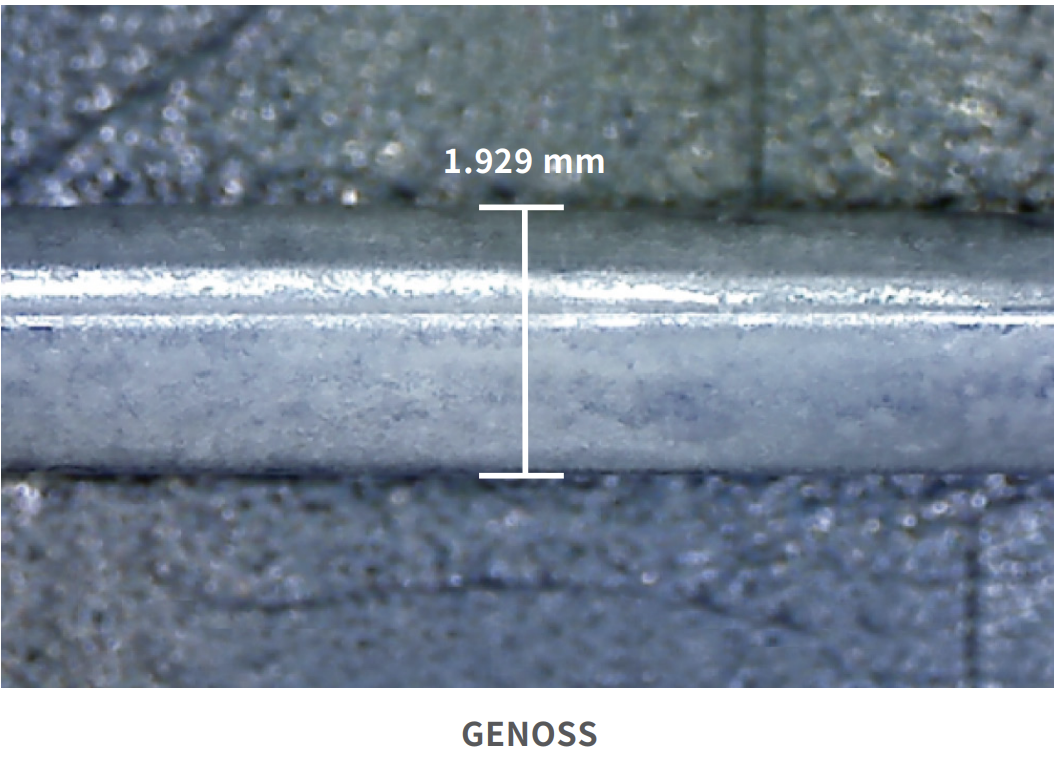

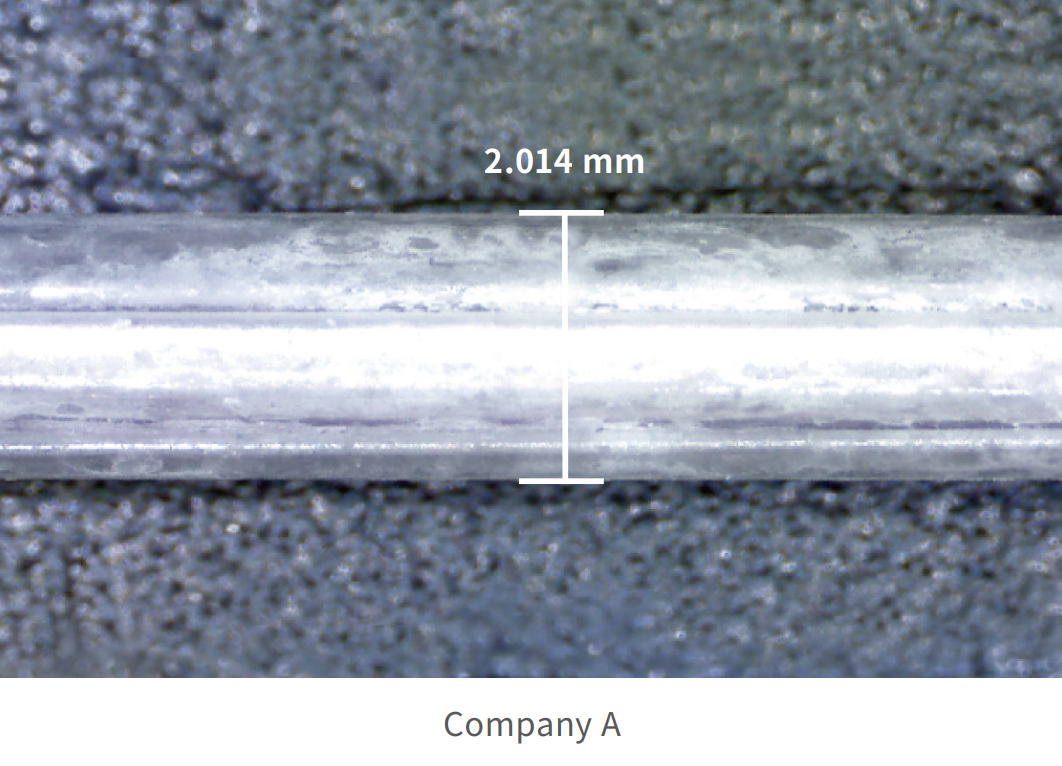

Low profile : High deliverability

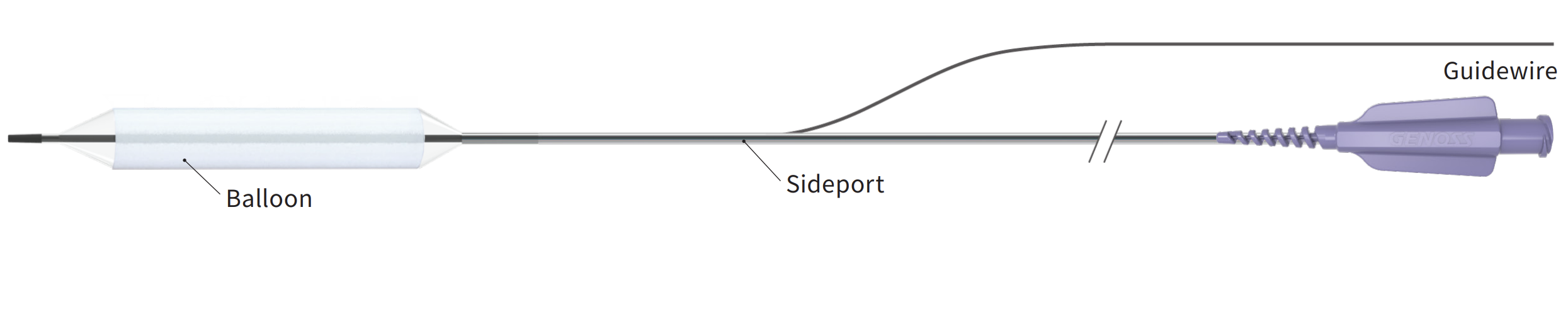

Paclitaxel coated PTCA Balloon catheter

Paclitaxel (anti-proliferative drug) delivered to target tissues through contact with vessel wall

Surface circular coating

Homogeneous drug delivery by even coating of balloon surface

Rapidly controlled drug release

Shellac (hydrophilic natural polymer) for rapid tissue diffusion and release of drugs

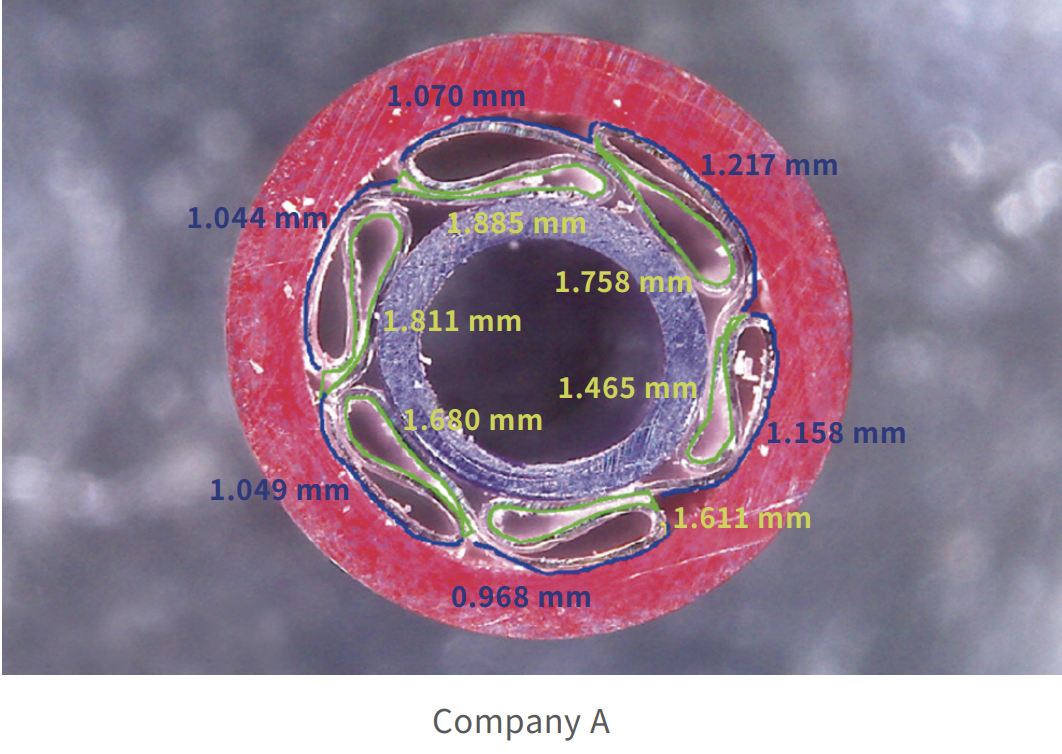

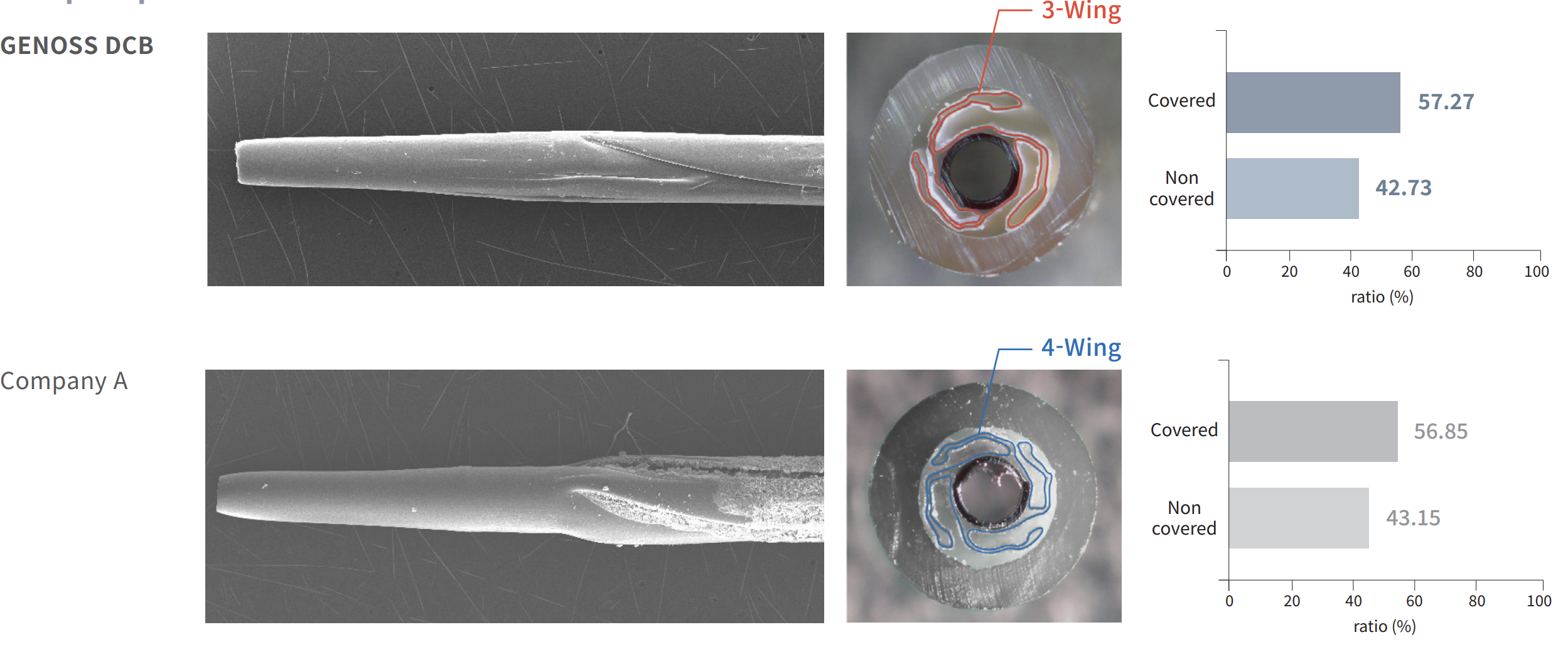

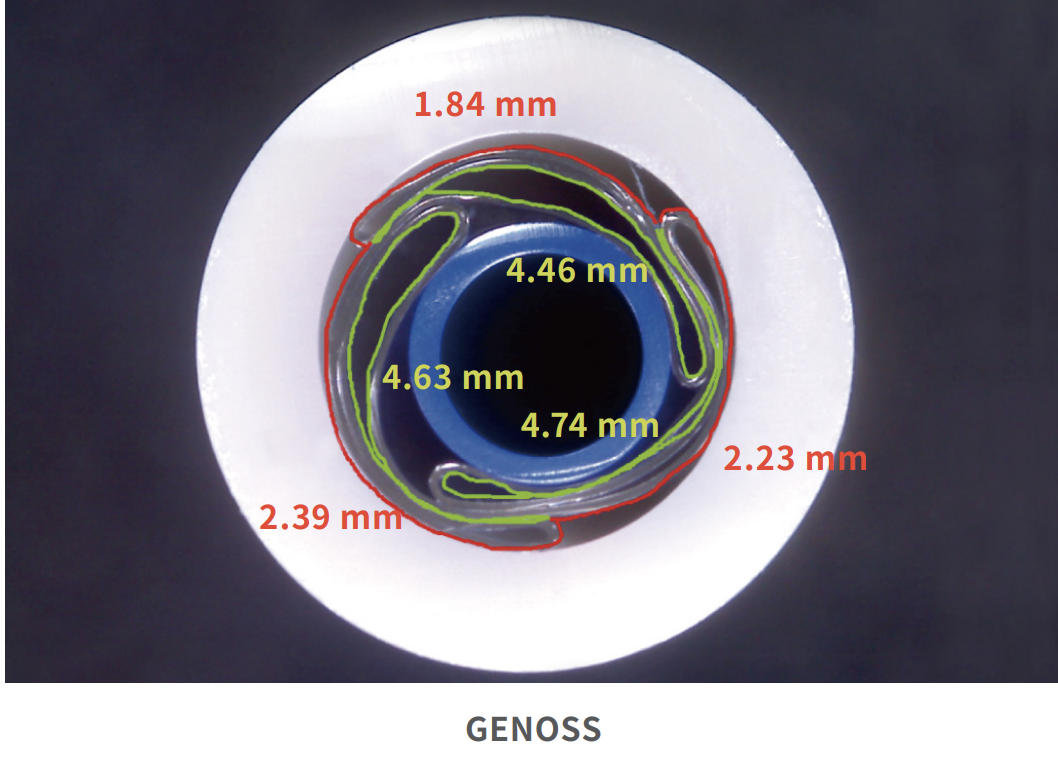

Prevention of washout from the balloon surface upon entry into the lesion with 3-folded wing

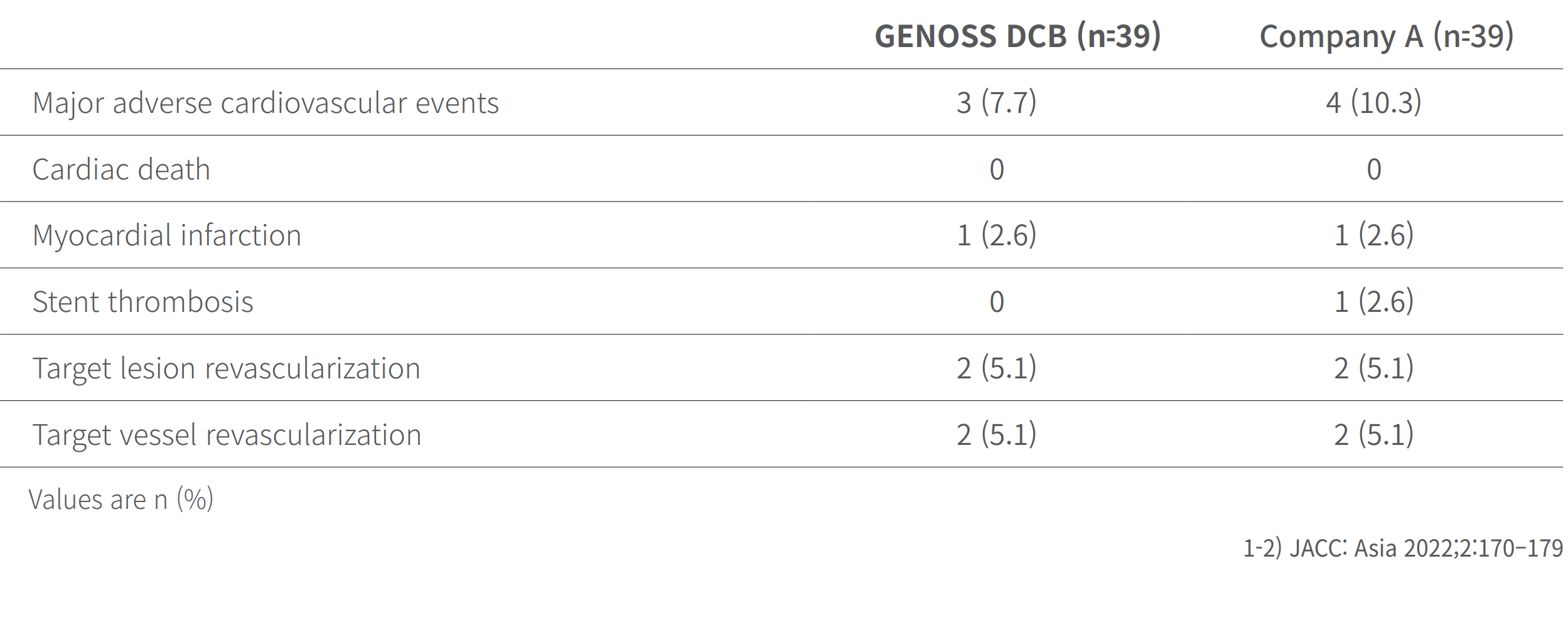

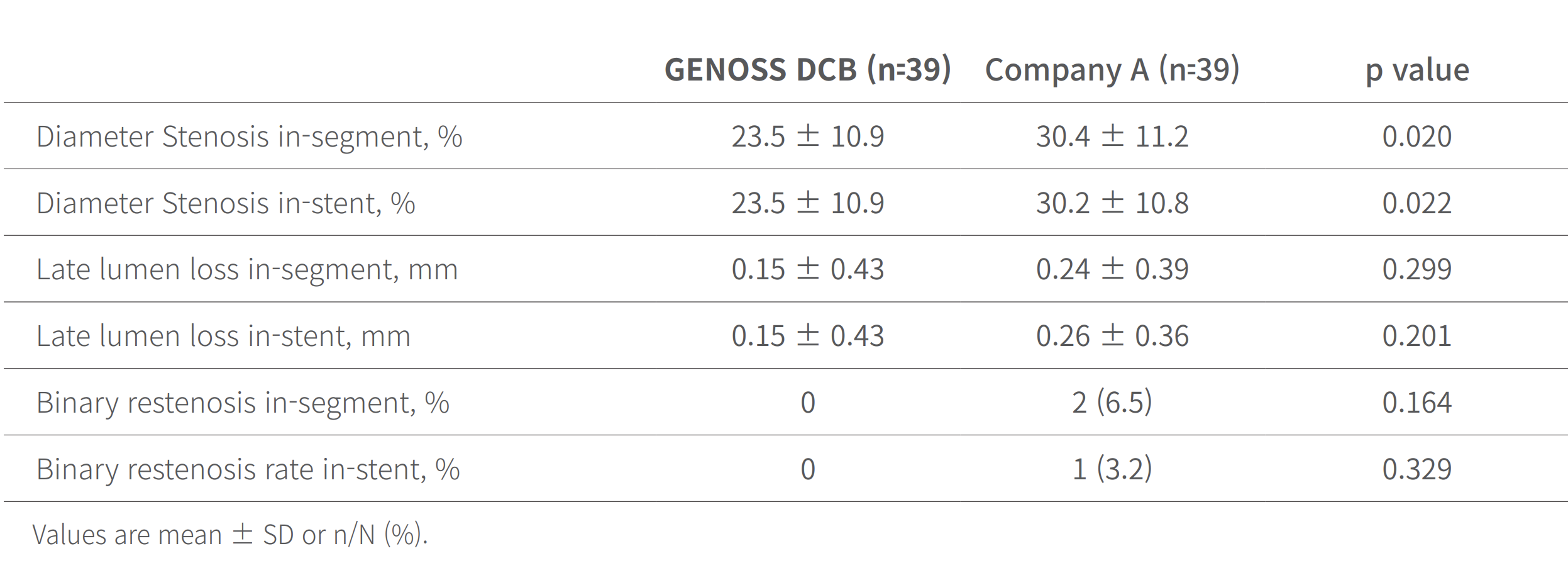

Inhibition of restenosis

Crystalline paclitaxel of 3 µg/mm2 coating with shellac for reduction of restenosis in the stent due to lumen loss in the late stent thrombos

Low profile delivery catheter system

An effective system for small vessel treatment with improved deliverability

Anatomy

Superior deliverability without compromise in complex anatomy

Hydrophilic coating

A coating with great deliverability

Features

Drug : Paclitaxel
Drug dose : 3.00㎍/mm²
Coating thickness : Avg. 10㎛
Coating material : Shellac
Coating type : Surface circular coating

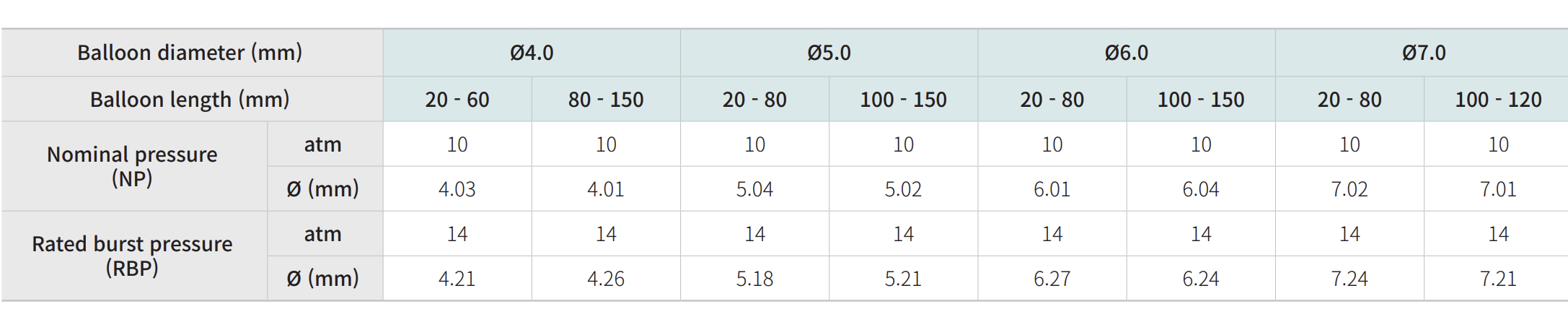

Nominal pressure : 8atm(2.00~4.00mm)
Rated burst pressure : 16atm(2.00~3.50mm), 14atm(3.75~4.00mm)
Distal shaft coating : Hydrophilic coating

Distal shaft : 2.5Fr(0.82mm)/2.8Fr(0.92mm)
Proximal shaft : 2.0Fr(0.68mm)
Lesion entry profile : 0.017”(0.43mm)
Usable length : 1450mm
Min. guiding catheter ID : 5Fr(1.42mm),0.056”
Max. guide wire OD : 0.014”(0.36mm)
Catheter type : Rapid exchange
Distal shaft coating : Hydrophilic coating
